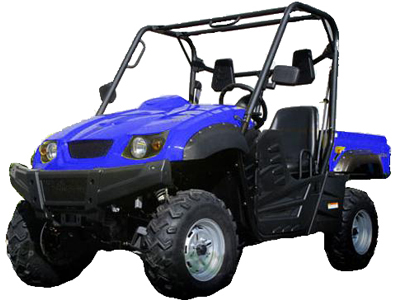

Utility Vehicle
MFI-UV500-HS
Gas Go-Kart
|
Displacement 500cc |
|
Starting from :
$000.00
|
4 Seat UTV
|
|
|
Call to order
: 718-766-5432 |
SPECIFICATIONS
|
Model
|
MFI-UV500-HS
|
ENGINE / DEIVE TRAIN
|
Engine
|
471 cc, 4-Stroke
|
Engine brand
|
HSUN
|
Cylinder Arrangement
|
Single Cylinder, 84.5mm*84mm
|
Horsepower
|
22.8HP/5500rpm
|
Max Torque
|
27N.m/5000rpm
|
Cooling System
|
Water Cooled(Assist Oil Cooled)
|
Fuel System
|
Vacuum Gasoline Pump Supply
|
Transmission
|
L-H-N-R-P
|
Reverse Gear
|
Y
|
Reverse Type
|
Inside Engine
|
Final Drive
|
2W/4W, Shaft Drive
|
Start System
|
Electric Start
|
Ignition
|
CDI electronic ignition
|
Max Speed
|
45MPH
|
Battery
|
12V/32Ah
|
FRAME / BODY / SUSPENSION / BRAKES
|
Front suspension
|
Independent double swing arm
|
Rear suspension
|
Independent double swing arm
|
Front brakes
|
Dual ventilated hydraulic disc
|
Rear brakes
|
Ventilated hydraulic disc
|
Front tires
|
AT25x8-12
|
Rear tires
|
AT25x10-12
|
CAPACITIES / DIMENSIONS
|
Net Weight
|
1155 lbs
|
Gross Weight
|
1389 lbs
|
Overall Length
|
118.5"
|
Overall Width
|
57.4"
|
Overall Height
|
76.3"
|
Carton dimension (L*W*H)
|
91.3*51.9*48.8 inch
|
Wheelbase
|
74.4"
|
Ground Clearance
|
9.65"
|
Fuel Capacity
|
7.7 gal
|
SAFETY / CONTROL
|
Foot brake
|
Y
|
Parking brake
|
Y
|
Headlights
|
Y
|
Tali lights
|
Y
|
Tool kit
|
Y
|
|
|
|
