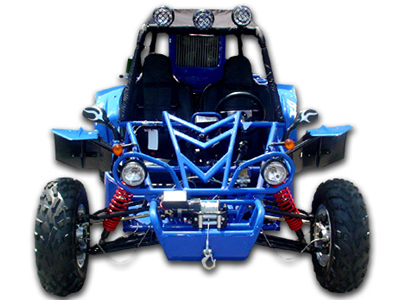

Go Kart
MFM-GK800
Gas Go-Kart
|
Displacement 800cc |
|
Starting from :
$000.00
|
Top Quality
|
|
|
Call to order
: 718-766-5432 |
SPECIFICATIONS
|
DIMENSIONS
|
| Overall Length |
2730mm |
| Overall Width |
1700mm |
| Overall Height |
1480mm |
| Wheelbase |
1925mm |
| Front Track |
1440mm |
| Rear Track |
1405mm |
| Ground Clearance |
280mm |
ENGINE
|
| Type |
3-Bore,4-Stroke, Liquid-cooled |
| Bore x Stroke |
68.5mm*72mm |
| Displacement |
796 cc |
| Compression ratio |
8.7:1 |
| Max Power |
26.2kw/5500rpm |
| Maximum Torque |
57/2500~3000Nm/r/min |
Starting
|
Electric
|
Ignition
|
CDI
|
Lubrication
|
Force & Splash
|
Transmission
|
manual clutch, 4 shift / reverse
|
Spark plug
|
F6T or F6TC
|
Plug gap
|
0.7*0.1 mm
|
Fuel type
|
RQ93 (unleaded)
|
Lubricate oil
|
=00C SAE-15W/40, FONT> 00C SAE-10W/30
|
| CAPACITIES |
| Maximum load
|
200kg
|
| Fuel tank
|
23L
|
| Engine oil
|
2900ml
|
| Coolant
|
4000ml
|
| Climbing
|
20-25 degree
|
| Battery
|
12V,32Ah
|
| Fuse
|
30A
|
CHASSIS
|
Front, Rear brake
|
Hydraulic disc, right foot control
|
Front tire
|
*
|
Rear tire
|
25*10-12
|
Front suspension
|
Independent Dual A-arm
|
Rear suspension
|
Independent Dual A-arm
|
Final Drive
|
Shaft driven
|
WEIGHT
|
Net Weight
|
500kg
|
|
|
|
