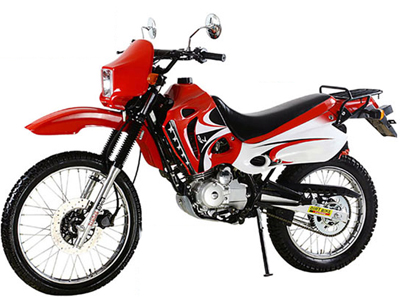

MFI-DB-200D
Dirt-Bike
|
Displacement 200cc |
|
Starting from :
$000.00
|
Semi Auto
|
|
| Call to order
: 718-766-5432 |
SPECIFICATIONS
|
ENGINE INFO :
|
|
Engine type
|
4-Stroke,single cylinder ,CB
|
Displacement
|
200cc
|
Cooling
|
Air cooled |
Max horsepowe
|
14.8hp/7500rpm
|
Max torque
|
13.5n.m/6000rpm
|
Bore*stroke
|
2.48*2.44inches
|
Max speed
|
56mile/h
|
Climbing ability
|
22degree
|
Ignition
|
C.D.I
|
Starting system
|
Kick/electric
|
Battery
|
12V/2.5Ah
|
Carburetor brand
|
PZ27
|
Engine oil
|
SAE15W/40SF |
CHASSIS ETC
|
| Clutch |
Manual
|
Transmission
|
International gear with 5 speed
|
Driveline
|
Chain drive
|
| Driving wheel |
Rear wheel drive
|
Brakes,front/rear
|
Disc/drum
|
| Brake operation |
Hand +foot
|
Tires,front/rear
|
2.75-21/4.10-18
|
| Fuel capacity/type |
2.3gal
|
Weight,G.W./N.W
|
297.6/ 242.5lbs
|
Max load
|
330.7lbs
|
DIMENSIONS
|
Wheelbase
|
47.6inches
|
OA L*W*H
|
82.7*32.7*50.4inches
|
Height to seat
|
32.7inches
|
Min ground clearance
|
11.4inches
|
Carton size
|
69.3*20.9*41.7inches
|
|
|
|
