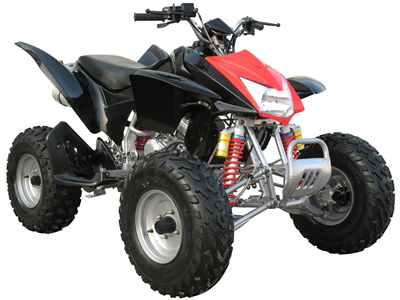

Full Size Sport ATV

MFC-250A-E

Gas Quad ATV	Displacement 250cc
Starting from : $000.00	Top Quality Min Order:2 units

250cc water-cooled, manual clutch
Max.load:100kg
Max.speed: 70km h
Max.power:11kW 7500r min
Max.torque:15.0 6000(N.m r min)

Back to ATV 110cc 125cc 150cc 200cc 250cc 350cc+

Call to order : 718-766-5432

SPECIFICATIONS
SPECIFICATIONS :
ENGINE INFO :
Engine type :	4-stroke, single cylinder with water-cooled,
Displacement :	250cc
Cooling :	water-cooled
Max horsepower :	14.96HP 7500rpm
Max torque :	15N.M 6000rpm
Bore*stroke :	65.5x66.2mm
Max speed :	70km h
Ignition :	CDI
Starting system :	Electric start
Battery :	12V, 9Ah
Engine oil :	0.9L
CHASSIS ETC :
Clutch :	manual clutch
Transmission :	Chain
Driving wheel :	Rear wheel force
Suspension,front rear :	double a-arm single arm
Brakes :	Front: disc brake Rear: disc brake
Brake operation :	disc brake
Tires,front/rear :	23 x 7-10 22 x 10-10
Fuel capacity type :	11.5L
Weight, G.W N.W :	231kg 195kg
Max load :	100kg
DIMENSIONS :
Wheelbase :	1030mm
LWH :	1800mmx1170mmx1140mm
Height to seat :	440mm
Min ground clearance :	145mm
Carton size :	1690mm x1150mm x 820mm
Shipping info :	Qty 40' HQ: 42pcs
