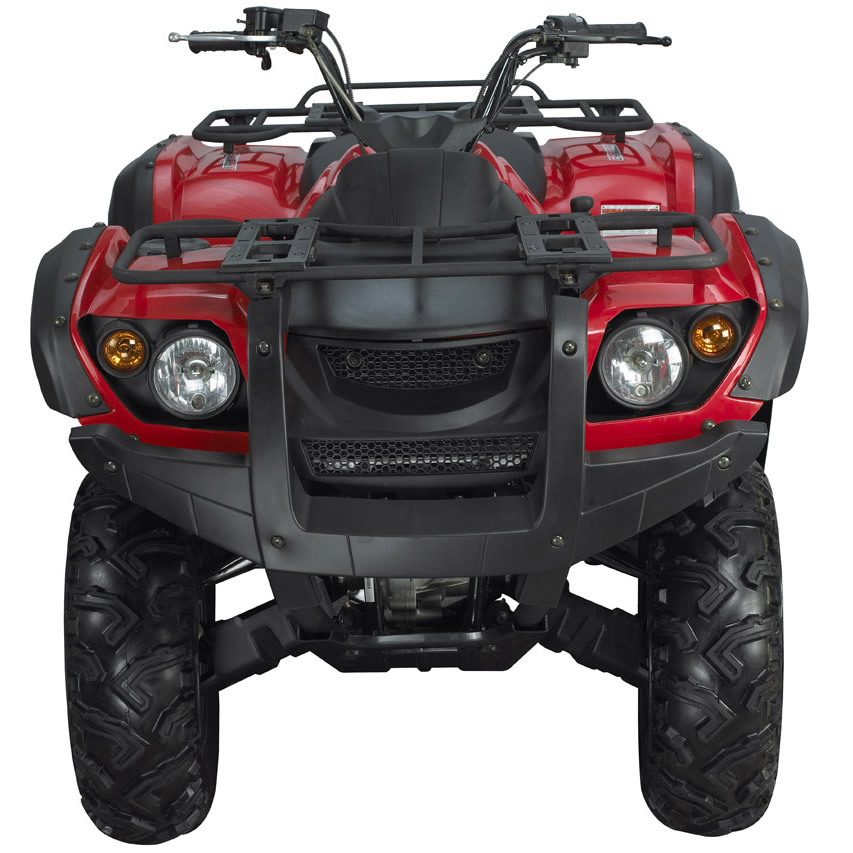

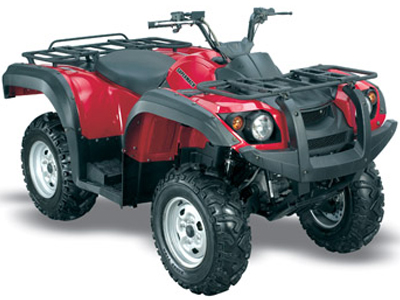

Utility type ATV - 500cc Engine

		Utility type ATV - 500cc Engine
		Tel. USA : 718-766-5432 Fax. USA: 718-766-5426	U.S.A. Business Hours (EST.) Mon. - Thu.: 9a.m. - 6 p.m. Fri. - Sun.: Closed

DEALERS

WANTED

Click HERE

ATV

MFS-ATV500S

Gas Quad ATV	Displacement 500cc
Starting from : $000.00	Top Quality

Back to ATV 110cc 125cc 150cc 200cc 250cc 350cc+

Call to order : 718-766-5432

SPECIFICATIONS
ENGINE
Type	471 cc, Water Cooled, 4-stroke, 1-cylinder
Bore x Stroke	3.33 x 3.30
Compression Ratio	9.4:1
Max. power	20HP 5500rpm
Max. torque	27.00N.m 5000-5500rpm
Carburetion	PD33J-A
Ignition	CDI
Start type	Electric Pull start
Transmission	L-H-N-R-P
Drive Train	Shaft Drive
CHASSIS
Suspension Front	Independent double swing arm
Suspension Rear	Independent double swing arm
Brakes Front	Dual ventilated hydraulic disc
Brakes Rear	Ventilated hydraulic disc
Tires Front	AT25 8-12 radial
Tires Rear	AT25 10-12 radial
DIMENSIONS
Product Dimension	L x W x H: 87 x51 x50
Seat Height	34
Wheelbase	54
Ground Clearance	10
Fuel Capability	4.5Gal 17L
Dry Weight	683 lbs
Battery	12V 21Ah

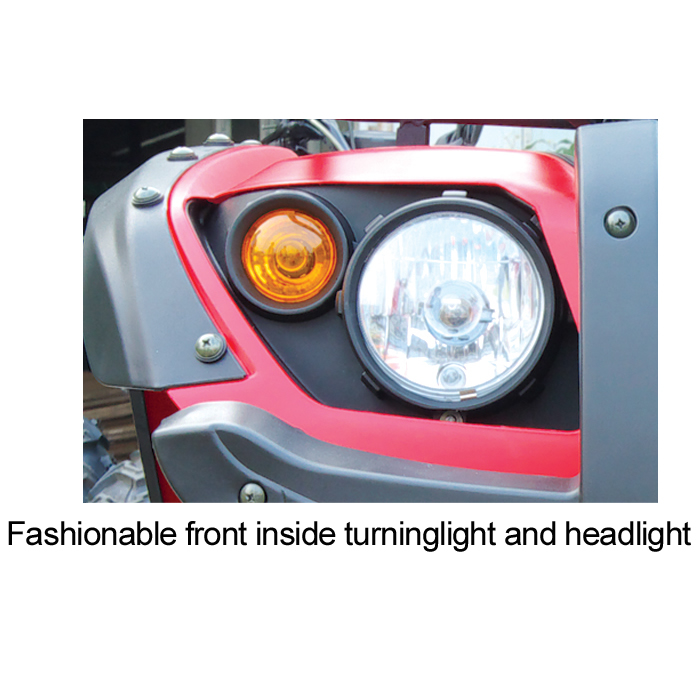

Lighting Front	12V35W 35Wx2, 12V5Wx2
Lighting Rear	12V5W 21Wx1
Gross Net Weight	926 703 lbs
