| SPECIFICATIONS |
Model
|

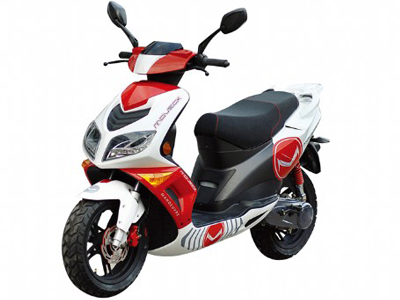

MFX-150T-11
|
Engine Displacement:
|
149.6cc
|
Engine Type:
|
Single cylinder, 4-stroke, air-cooled
|
Engine Model:
|
157QMJ
|
Bore x Stroke (mm):
|
57.4 x 57.8
|
Compression Ratio:
|
8.8:1
|
Max. Power:
|
8.6 hp @ 7000 rpm
|
Max. Torque:
|
7.38 ft-lbs @ 4900 rpm
|
Engine Oil Capacity:
|
0.9 L
|
Oil Grade:
|
SAE10W-30
|
Carburetor:
|
PD24J
|
Starting Mode:
|
Electric/Kick
|
| Brake (front/rear): |
Disc/Drum
|
Ignition Mode:
|
CDI
|
Spark Plug:
|
A7RTC
|
Spark Plug Clearance:
|
0.6-0.7 mm
|
Transmission:
|
CVT Automatic
|
Clutch Type:
|
Automatic, Centrifugal
|
| Max. Speed: |
52.5 mph
|
Lubrication System:
|
Pressure Splash
|
Battery Capacity:
|
12V/7Ah
|
| Headlight: |
LED
|
Turn Signal:
|
12V 10W
|
License Plate Light:
|
12V 5W
|
Dimension:
|
1860 x 680 x 1130 mm
|
Wheelbase:
|
1360 mm (53-1/2")
|
Fuel Tank Capacity:
|
12 L (3.2 gallons)
|
Dry Weight:
|
231 lbs
|
Max. Load:
|
488 lbs
|
Tire Size (front & rear):
|
130/70-12
|
|
|
|
|
