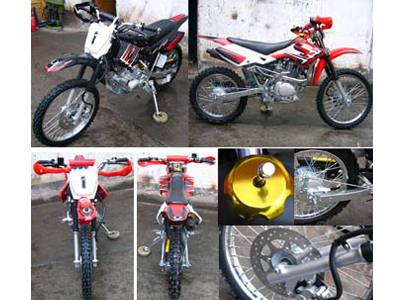

MFI-DB-200A
Dirt-Bike
|
Displacement 200cc |
|
Starting from :
$000.00
|
|
|
|
Call to order
: 718-766-5432 |
SPECIFICATIONS
|
ENGINE INFO :
|
|
Engine type
|
4-Stroke,single cylinder ,CG
|
Displacement
|
200cc
|
Cooling
|
Air cooled
|
Max horsepowe
|
11.4hp/9000rpm
|
Max torque
|
8.5n.m/7500rpm
|
Bore*stroke
|
2.22*1.95inches
|
Max speed
|
56mile/h |
Climbing ability
|
30degree
|
Ignition
|
C.D.I
|
Starting system
|
Electric/kick
|
Battery
|
12V/4Ah
|
Carburetor brand
|
PZ27
|
Engine oil
|
SAE15W/40SF
|
CHASSIS ETC
|
| Clutch |
Manual
|
Transmission
|
International gear with 5 speed
|
Driveline
|
Chain drive
|
| Driving wheel |
Rear wheel drive |
Brakes,front/rear
|
Disc/drum
|
| Brake operation |
Hand +foot
|
Tires,front/rear
|
70/100-19 / 90/100-16
|
| Fuel capacity/type |
1.6gal
|
Weight,G.W./N.W
|
*/ 218.3lbs
|
Max load
|
330.7lbs
|
DIMENSIONS
|
Wheelbase
|
48.8inches
|
OA L*W*H
|
70.9*29.9*41.5inches
|
Height to seat
|
31.5inches
|
Min ground clearance
|
9.5inches
|
Carton size
|
65.7*18.3*30.3inches
|
|
|
|
